ULNA 2516 Amplifier 0,05 bis 2,6 GHz

Product No.:: 10131
Shipping time:: ca. 3-4 days (abroad may vary)

59,00 EUR

incl. 19% tax excl. Shipping costs

Add to wish list

Ask about product

Description

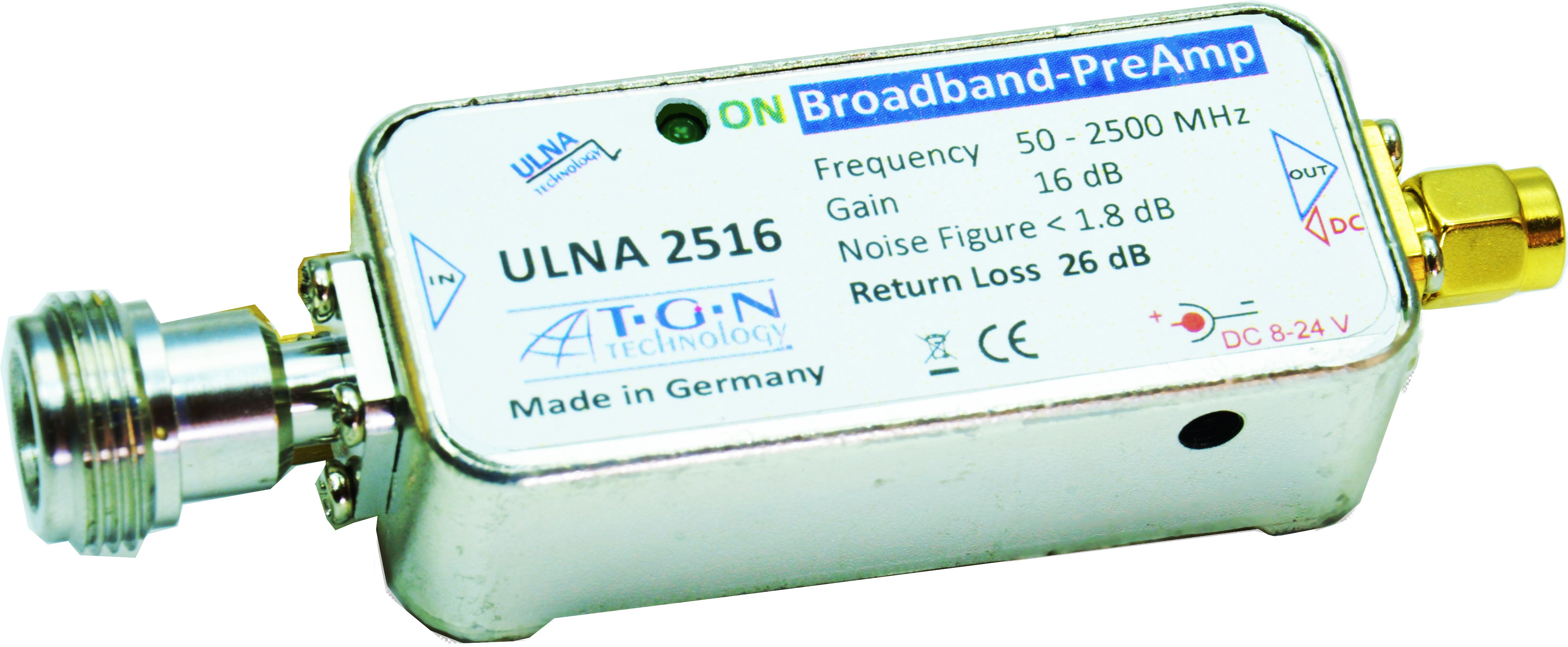

Broadband Low Noise Amplifier 0,05 to 2,6 GHz
Excellent, e.g. as a preamplifier for broadband aplicationes in test setups. Its flat amplitude frequency response is constant over a wide frequency range. The compact size makes it easy to integrate and useful in many applications.

Specifications

Frequency range: 80-2600 MHz
Gain: 16 dB to 1,8 GHz
Max output level: 13dBm to 1,8 GHz

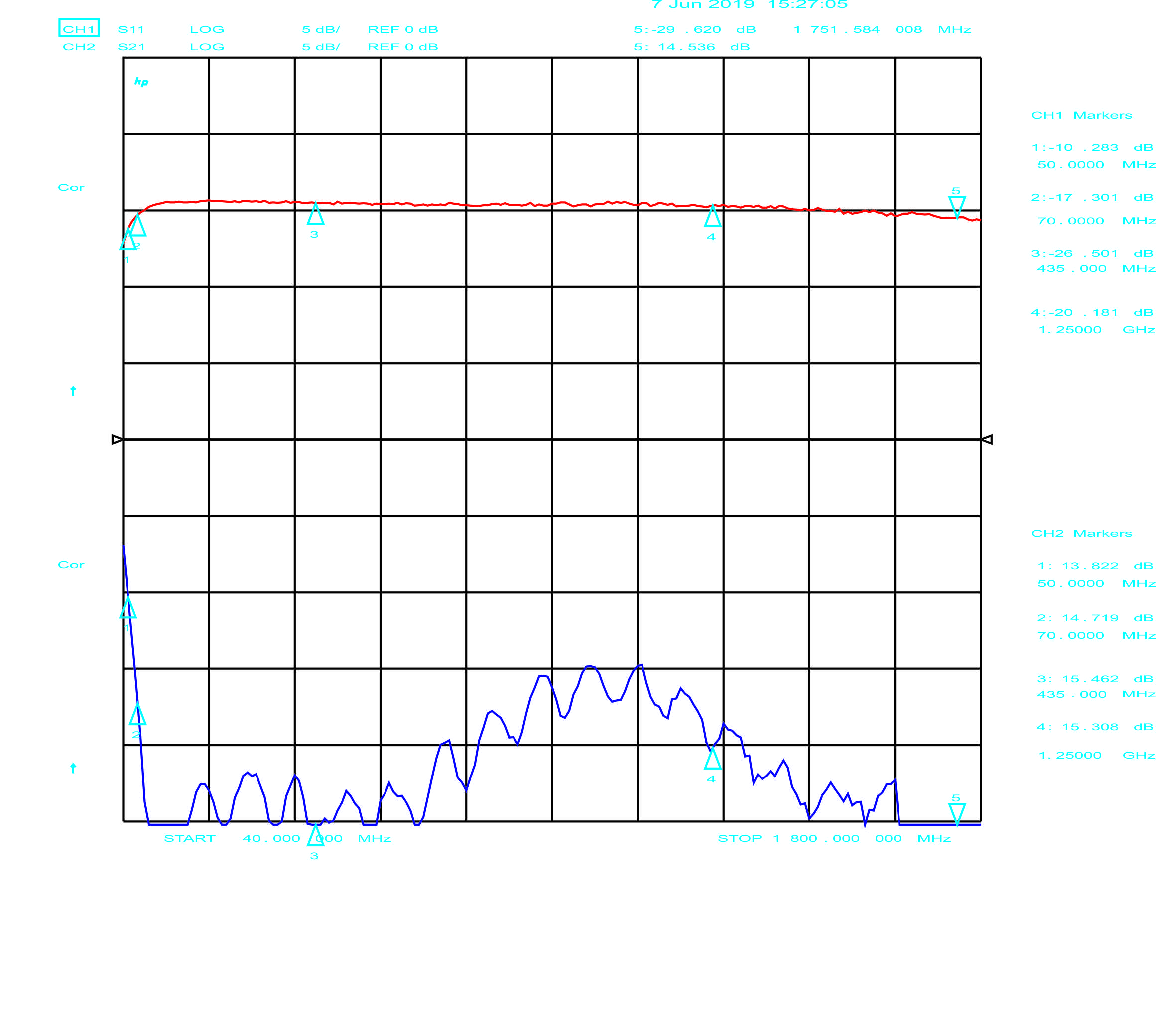

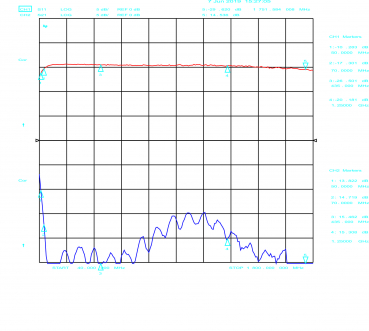

Input return loss:-26dB min
Output return loss:-20 dB min

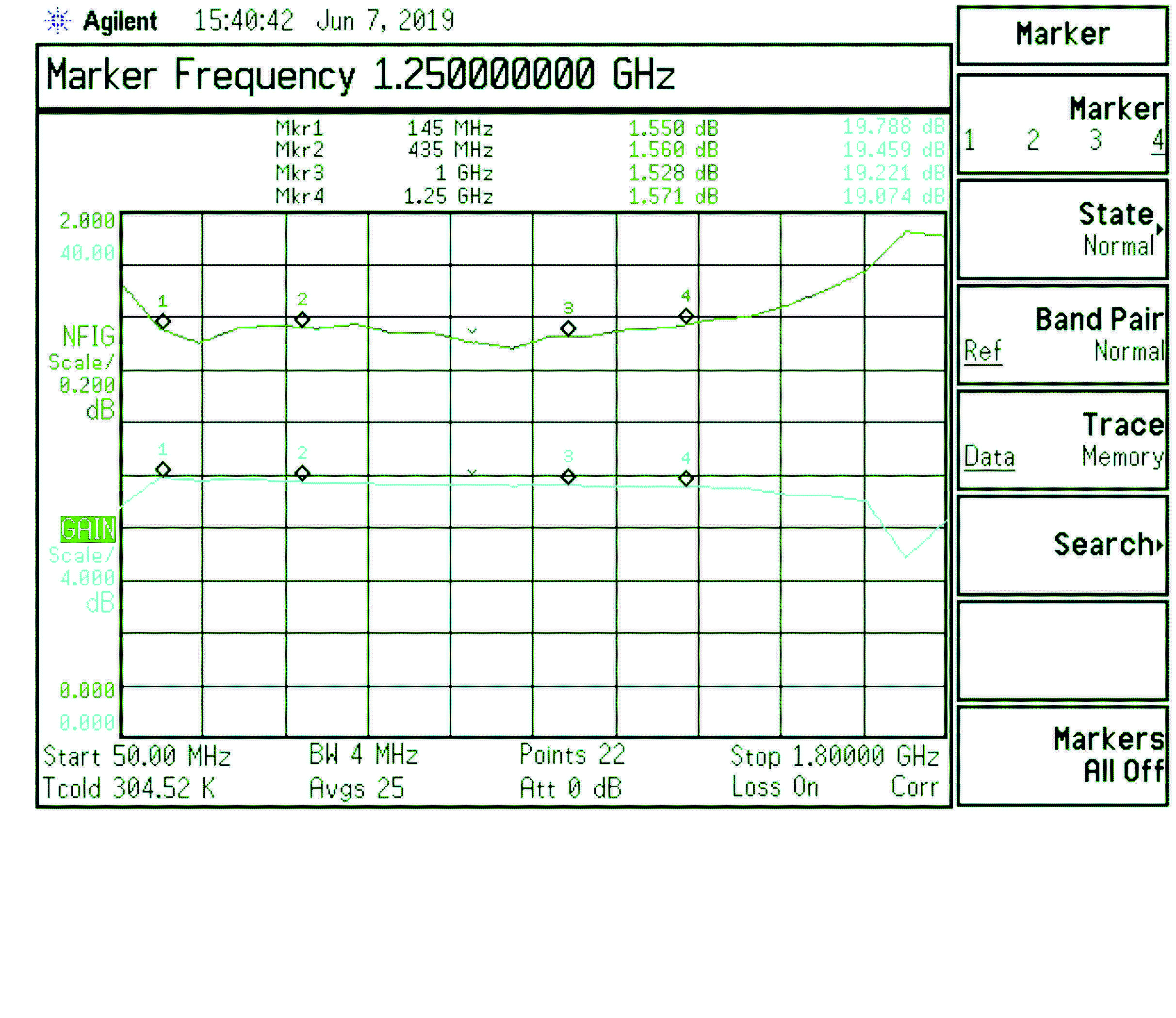

Noise figure: <1.9 dB
IP3: 24dBm
Connector: FEMALE - SMA male
Impedance 50 ohm
Current consumption: 8-18 V 80mA Power supply: direct and remote power.
DC jack 2.5 mm
Dimensions: 62X28X18 mm without connectors
